ACCC
Overview
specifications
Physical
Characteristics
Casablanca
Dhaka
Oriole
alumnium wires (nos)
16
38
22
core construction
1350 - O Tempered Annealed Aluminum Strands (63% IACS)
2 layer, trapezoidal shape
Carbon Fiber Composite Core
1350 - O Tempered Annealed Aluminum Strands (63% IACS)
2 outer layer & inner trapezoidal
Carbon Fiber Composite Core
1350 - O Tempered Annealed Aluminum Strands (63% IACS)
3 layer, trapezoidal shape
Carbon Fiber Composite Core
Cross section area
(MM2)
total area
332.7
alumnium / core
293 / 39.7
total area
795
alumnium / core
724 / 71
total area
795
alumnium / core
724 / 71
overall diameter (mm)
21
32.87
32.87
Electrical
Characteristics
rated strength (core)
85kN
151.7kN
151.7kN
rated strength (conductor)
101.9kN
192.2kN
192.2kN
dc resistance (°C)
0.0954°C
0.0387°C
0.0387°C
current capacity
at 180C (A)
1220A
2193A
2193A
Standards &
Certifications
Tests
Sterlite undertakes tests on all products to ensure quality and reliability.
Below is an overview of the results.
Stress Strain
lEEE-1138 Ch.5.1.1.11 IEC 61089, Annexure
No visual damage to the cable; fiber showed no significant strain or induced attenuation.
Tensile Strength
IEEE-1138 Ch 4.2.2.3 IEC 60794-1-2, Method El
No significant damage to any component of the cable; fiber attenuation <0.1 dB/Km at 1550 nm.
Sheave
IEEE-1138 Annexure D IEC 60794-1-2, Method E9
No significant damage to any component of the cable; fiber attenuation <0.1 dB/Km at 1550 nm.
Aeolian Vibration
IEEE-1138 Annexure C TIA 455-81A-1991
No visual damage to the cable; fiber showed no significant strain or induced attenuation.
Galloping
IEEE-1138 Annexure C TIA 455-81A-1991
No significant damage to any component of the cable; fiber attenuation <0.12 dB/Km at 1550 nm.
Creep
EIA/T IA 455-25A-1989 and EIA 455-41-1985 IEC 61395
Fiber attenuation < 0.02 dB/Km at 1550 nm. Cable elongation ratio: 0.02%.
Short Circuit

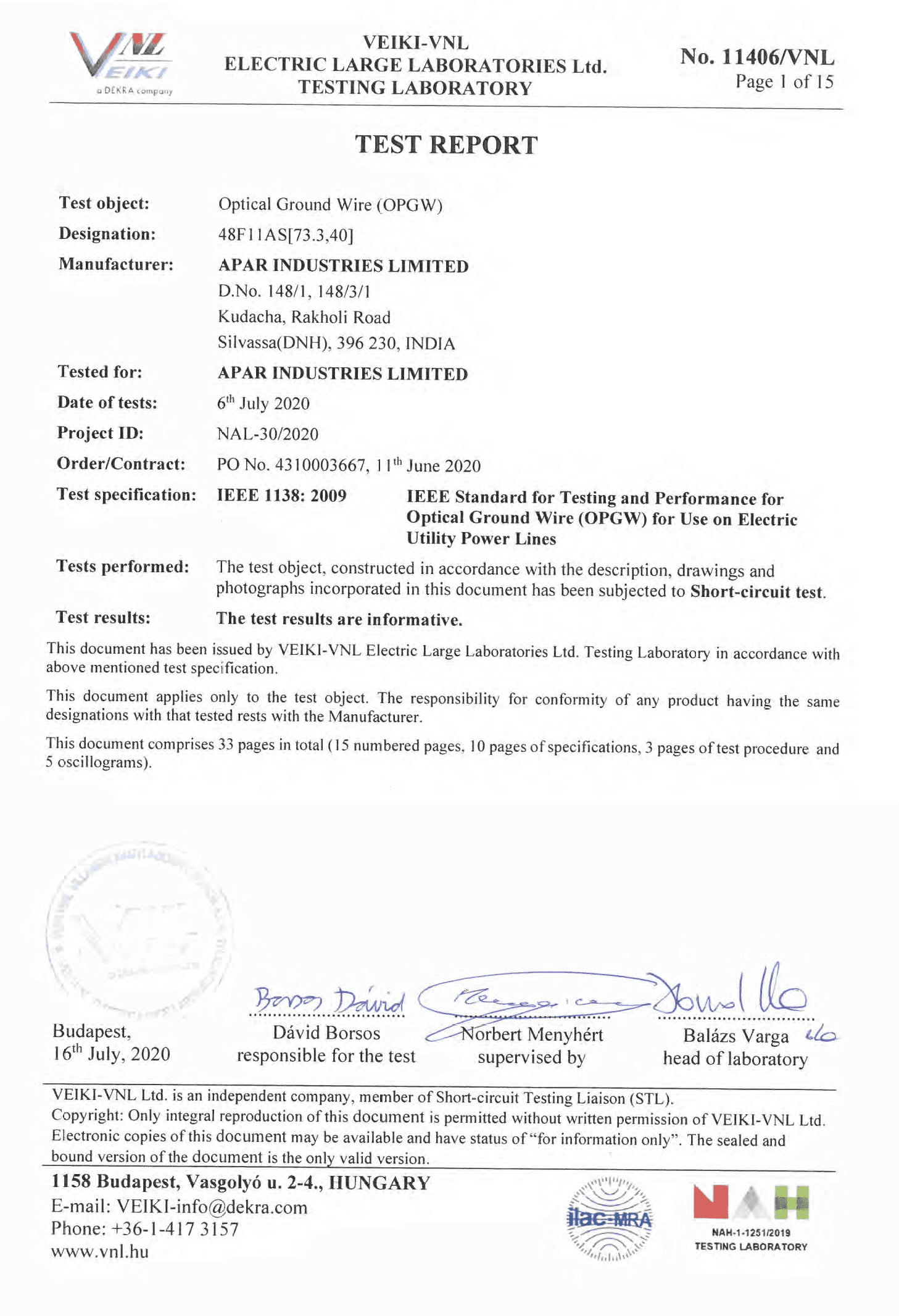

IEEE-1138 Annexure A IEC 60794-1-2, Method Hl
No significant damage to any component of the cable; fiber attenuation = 0.05 dB/Km at 1550 nm.
